Arid Bilge Systems
Arid Bilge is a central vacuum system that automatically and effortlessly maintains bilge compartments throughout the vessel and provides a bilge that is 100% dusty dry. Arid Bilge can help to solve your boat mold problem.
Arid Bilge is automatic, reliable, flexible, and best of all, it works.
You will notice the Arid Bilge difference within 24 hours of installation.
Arid Bilge Series 1 Nano Instruction Manual
Shipping:
- FedEx for the US and Canada
- DHL for other countries
Reference Article: "3 Easy Steps to Solve the Mold Problem on Your Boat!"
Benefits of using the Arid Bilge Series 1 system:
- Eliminate the #1 source of onboard odors
- Lower onboard humidity and prevent condensation damage
- Find small leaks that now leave trails through a dry bilge
- Stop mold and mildew before it starts to grow
- Enhance the vessel's resale value
- Optional USCG approved 15ppm oily water monitored systems available
- Available in 4 different models with 1 to 10 intake zone versions
Height - 10.12 inches / 25.8 centimeters
Box width - 5.12 inches / 13.0 centimeters
Depth - 4.3 inches / 10.7 centimeters
Box dry weight - 4 pounds / 1.9 kilograms
Intake tubing - pre-attached 5/32" diameter set at 20 feet in length, can be spooled for shorter runs
Unit Maximum Expected Flow Rate - 5 US quarts / 5 liters per hour
Power - 12 Volt DC standard
Power draw - 0.089 amp average standby draw,
0.36 amp average run draw @ 12 volt DC

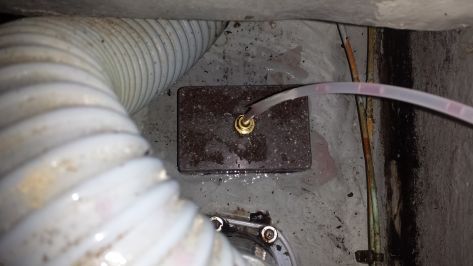

- 2" X 3" rectangular pad - mini standard pickup (flat bilge)

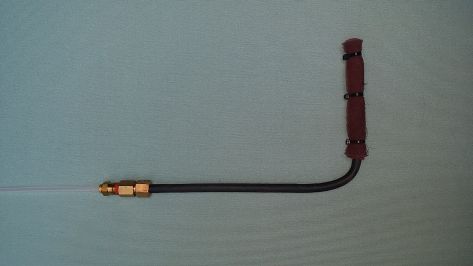

- L shaped wand-type (V-shaped bilge bottom)
Limited warranty: one-year parts and labor.
Note: Standard traditional bilge pumps must always still be installed on your boat. The Arid Bilge System is a low flow unit that is not intended nor designed to replace conventional bilge pumps. The Arid Bilge System is not to be relied upon to maintain vessel flotation in emergencies. Instead, it is a supplementary system that takes over the day-to-day needs of the vessel by ridding the bilge(s) of all standing water. The Arid Bilge System removes the standing water in your bilge that a traditional bilge pump does not remove.

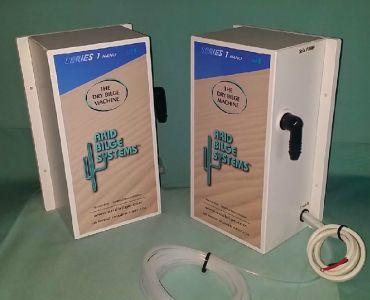

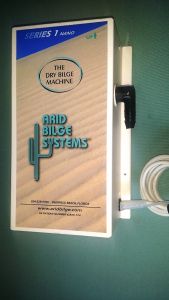

- Series 1 Nano Unit
- Intake tubing (pre-installed) - 5/32" Mazzer Polyethylene tubing, 20 feet long. Tubing can be spooled but not cut or lengthened.
- Discharge port - 1/2" barbed fitting
- Pickup: 2" X 3" pad (flat bilge bottom)
